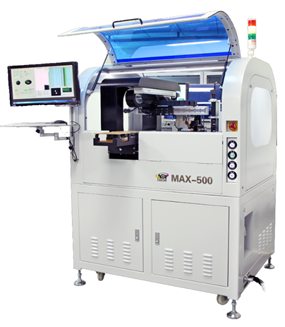

Auto drill bit re-sharpner
Auot drill re-sharper is a product of Taiwanese machine manufacturer, Coaster.
This system re-sharp the blade of drill bit and inspect sharpness, remaining rength, diameter and edge by equipped AOI.
System is fully automatic and loader is able to stock separately, then system continously run without handling time.
Max. productivity is 500pcs/hour, 10.000pcs /day. 5-8 machine operation/person.
480 unit are shipped all over the world.
| Type |
MAX-500A Φ0,20mm-0,55mm MAX-500B Φ0,60mm-1,20mm MAX-500C Φ0,075mm-0,15mm |
| Point Angle | 110o-150o |
| Face Angle | 0o-30o |
| Grinding Wheel Diameter | Φ70mm |
| Grinding Wheel Speed | 6000~8000rpm |
| Power Supply | AC220V,50Hz／60Hz,2A |
| Power Consumption | 300W/H |
| Air consumption | 5kg∕cm2-7.5kg∕cm2 (No moisture and grease) |
| Working requirement | Temperature: 20~26Co Humidity: 50~60% |
| Size | 1185mmx1130mmx1705mm |
| Weight | 700 Kg |
