Verification system n.vision

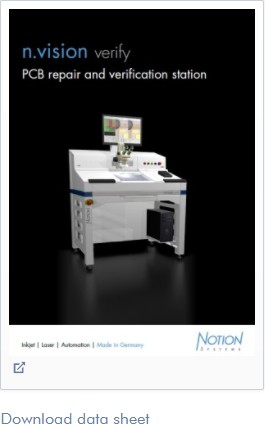

n.vision verify - Sophisticated verification system for PCB





  • Integrated Nikon stereo microscope

  • CCD camera available

  • Feature measurement available

  • Automated load/unload with classifying available

  • Smooth adaptation to your IT environment

  • Accepts image data and inspection data of AOI systems already in your production line

  • Intuitive and smart GUI





Technical Data

Substrate size 330 x 250 mm (larger on request)
Substrate height Up to 10 mm
Substrate fixture Hard stop & optional vacuum hold down
Stage Repeatability < 10 micron
Dimensions (w) 1200 x (d) 950 mm x (h) 1700 mm
Electrical interface 230 V / 400VA, transformer included if necessary
User Interface Intuitive GUI, matches SHIRAI Visper Repair System (VRS)
Display 24”wide screen TFT
Microscope NIKON high resolution precision stereoscopic microscope
Optional camera Color CCD, better than 5 micron resolution
