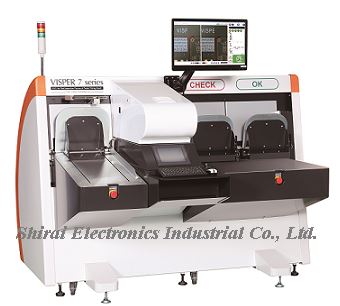

VISPER710SLZ/SLWZ

Only VISPER, can make Simultaneous double-sided
scanning possible!

710

The most ideal A.V.I. with "Simultaneous Double Sides Scan System"
Can reduce inspection time, which has been used reliably all over the world.

Software focused on its usability
By switching the master mode and operator mode,VISPER can be realized the registration process smoother.The latest software is equipped with many capable function for reducing the setup time.

Solution with VISPER Support System
By connecting VISPER and VISPER Support System on the network,
it can be possible to do the total support from inspection to quality control issues.

Dimension & Approx. weight
Dimension	1,895mm　x　1,772mm　x　1,719mm　(WxHxD) (74 5/8inch x 69 3/4inch x 67 5/8inch)
Approx. weight	550kg (1,213lb)

VISPER710SLZ Specification
Resolution Applicable PWB size	25μm　/　pixel　( 0.99mil　/　pixel ) 　80mm x 80mm - 175mm　x　360mm (3 1/8inch x 3 1/8inch - 6 7/8inch x 14 1/8inch) 　t=0.8mm～1.6mm　(t =0.032 - 0.063inch)
Resolution Applicable PWB size	35μm　/　pixel　( 1.38mil　/　pixel ) 　80mm x 80mm - 250mm　x　360mm (3 1/8inch x 3 1/8inch - 9 7/8inch x 14 1/8inch) t=0.8mm～1.6mm　(t =0.032 - 0.063inch)

VISPER710SLWZ Specification
Resolution Applicable PWB size	18μm　/　pixel　( 0.71mil　/　pixel ) 　80mm x 80mm - 250mm　x　360mm (3 1/8inch x 3 1/8inch - 9 7/8inch x 14 1/8inch) 　t=0.8mm～1.6mm　(t =0.032 - 0.063inch)
Resolution Applicable PWB size	20μm　/　pixel　( 0.78mil　/　pixel ) 　80mm x 80mm - 250mm　x　360mm (3 1/8inch x 3 1/8inch - 9 7/8inch x 14 1/8inch) t=0.8mm～1.6mm　(t =0.032 - 0.063inch)
Resolution Applicable PWB size	25μm　/　pixel　( 0.99mil　/　pixel ) 　80mm x 80mm - 250mm　x　360mm (3 1/8inch x 3 1/8inch - 9 7/8inch x 14 1/8inch) t=0.8mm～1.6mm　(t =0.032 - 0.063inch)

【Attension】
 This product is out of adaptation of CE-marking.
 When it is necessary, hardware is different.
 Software is same, but applicapable P.W.B maximum size is 250mm×330mm.
