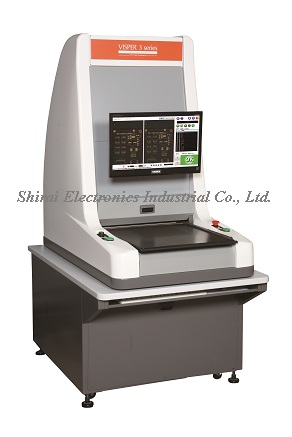

This type handles manual inspection of large-sized P.W.B.
with high density and high accuracy.
| Dimension & Approx. weight (Table is included) | |
| Dimension | 900mm x 2,050mm x 1,270mm (WxHxD) (35 1/2inch x 80 3/4inch x 50inch) |
| Approx. weight | 200kg (441lb) |
| VISPER330CLZ Specification | |
| Resolution Applicable PWB size |
50μm / pixel ( 1.97mil / pixel ) Max : 350mm x 462mm ( 13 3/4inch x 18 1/4inch ) t = Min 0.1mm(0.004inch) Max 2.0mm(0.079inch) |
| Resolution Applicable PWB size |
60μm / pixel ( 2.36mil / pixel ) Max : 420mm x 516mm ( 16 1/2inch x 20 3/8inch ) t = Min 0.1mm(0.004inch) Max 2.0mm(0.079inch) |
| VISPER330CLWZ Specification | |
| Resolution Applicable PWB size |
25μm / pixel ( 0.99mil / pixel ) Max : 350mm x 462mm ( 13 3/4inch x 18 1/4inch ) t = Min 0.1mm(0.004inch) Max 2.0mm(0.079inch) |
| Resolution Applicable PWB size |
30μm / pixel ( 1.18mil / pixel ) Max : 420mm x 516mm ( 16 1/2inch x 20 3/8inch ) t = Min 0.1mm(0.004inch) Max 2.0mm(0.079inch) |
